Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise.

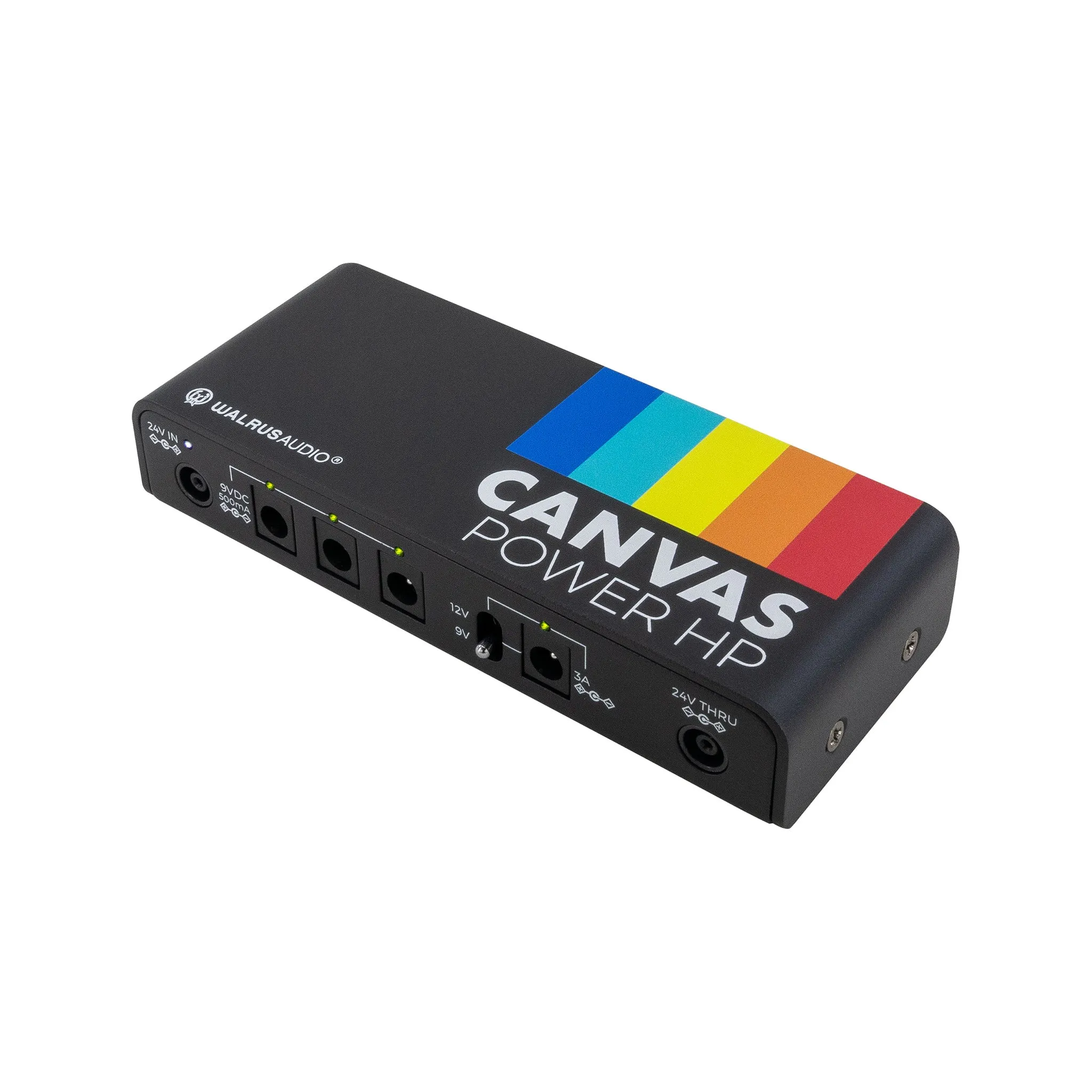

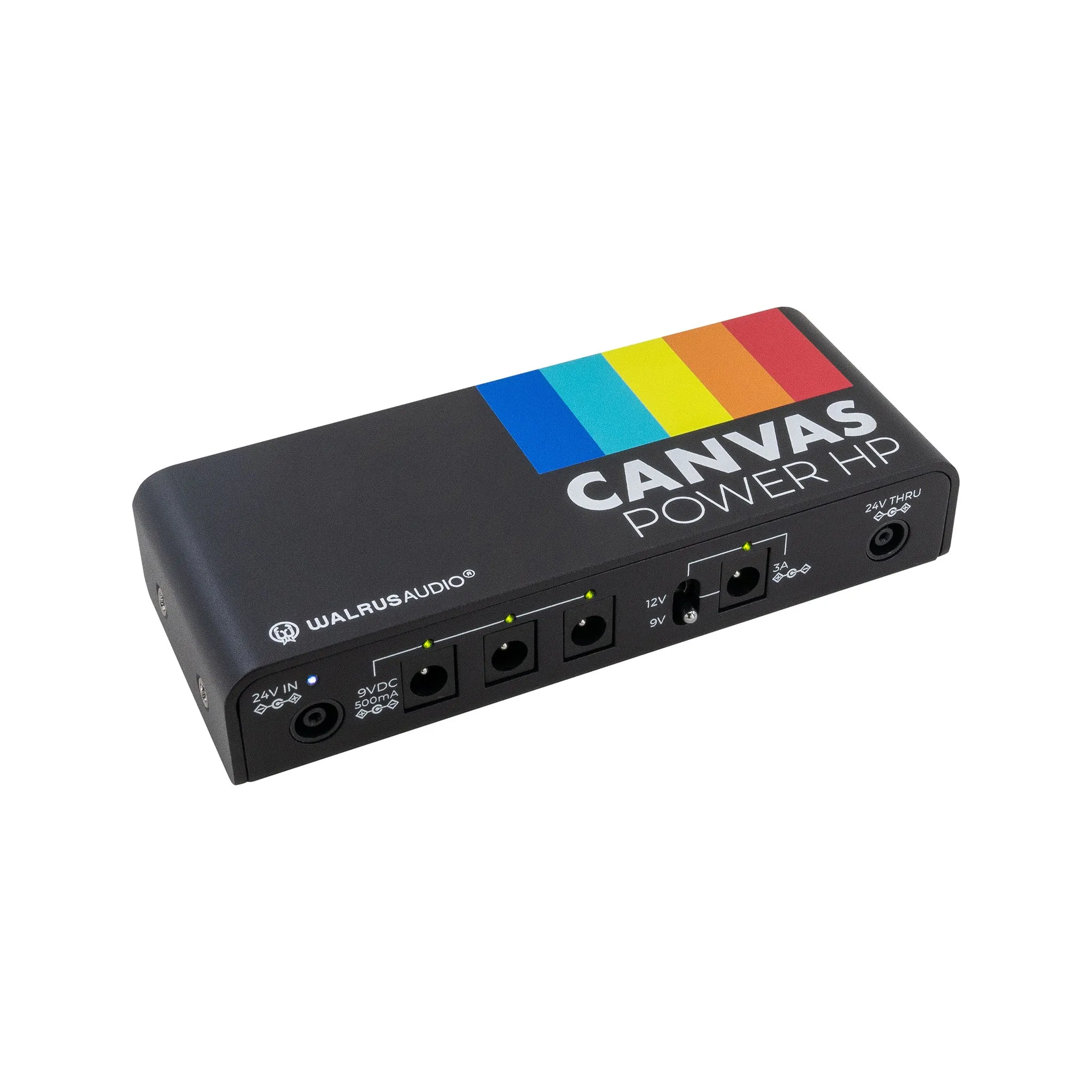

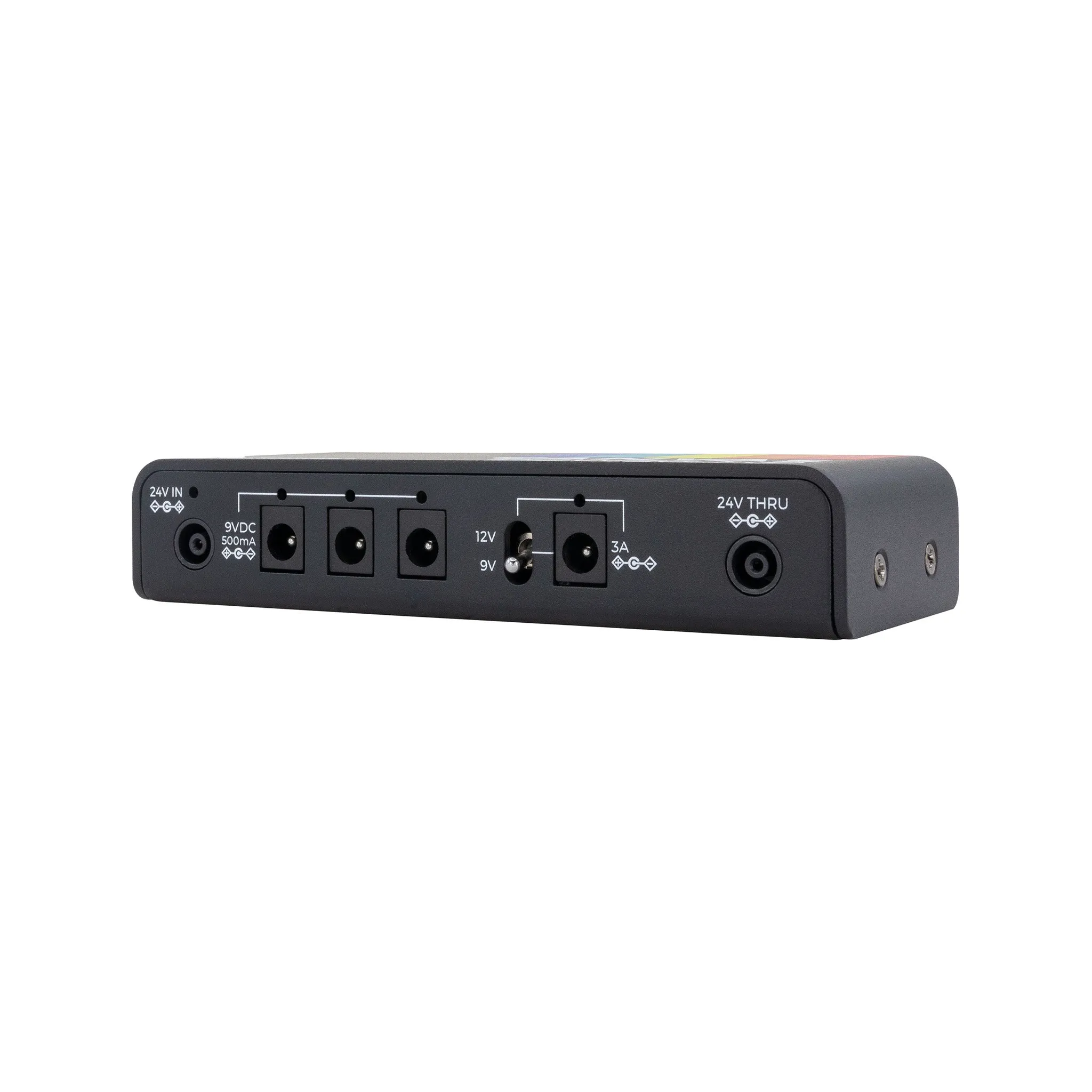

The Canvas Power HP allows you power the thirstiest of modelers and pedals with a massive 3A (three Amp, or 3,000mA) output. The HP also has 3 isolated power outputs delivering up to 500mA of clean power at 9v. The 3A output can also switch between 9V and 12v for powering high-voltage pedals.
Features:
- 4 isolated outputs
- One 3A or 3,000mA output on adjustable 9V/12V
- Three 500mA output on each 9V output
- LED indicators to indicate a solid connection
- Voltage selection from 18, 12 or 9v (375mA max. @ 12V / 250mA max. @ 18V)
- With the 24V Link Output, you can connect up to two additional Canvas Power devices
Specifications:

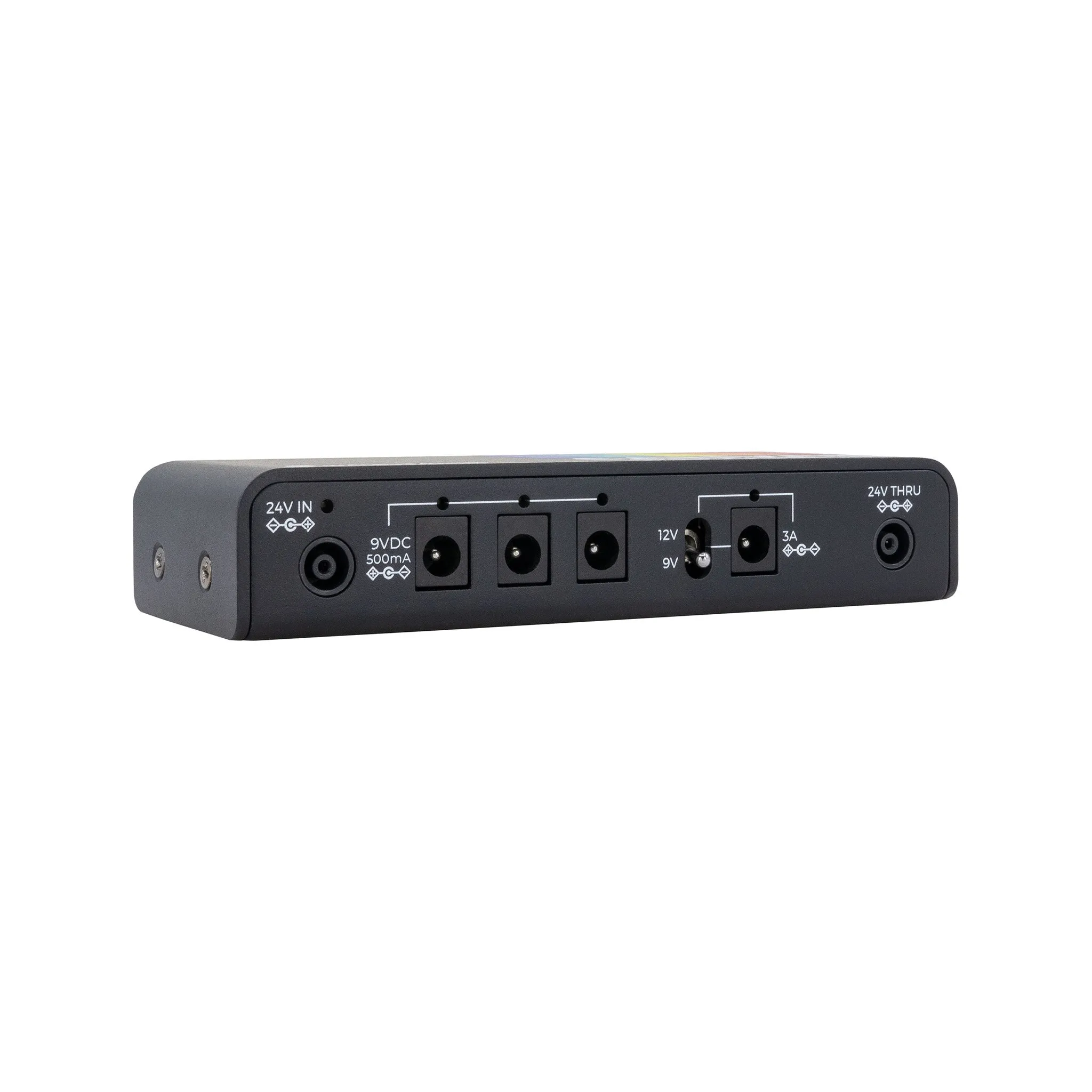

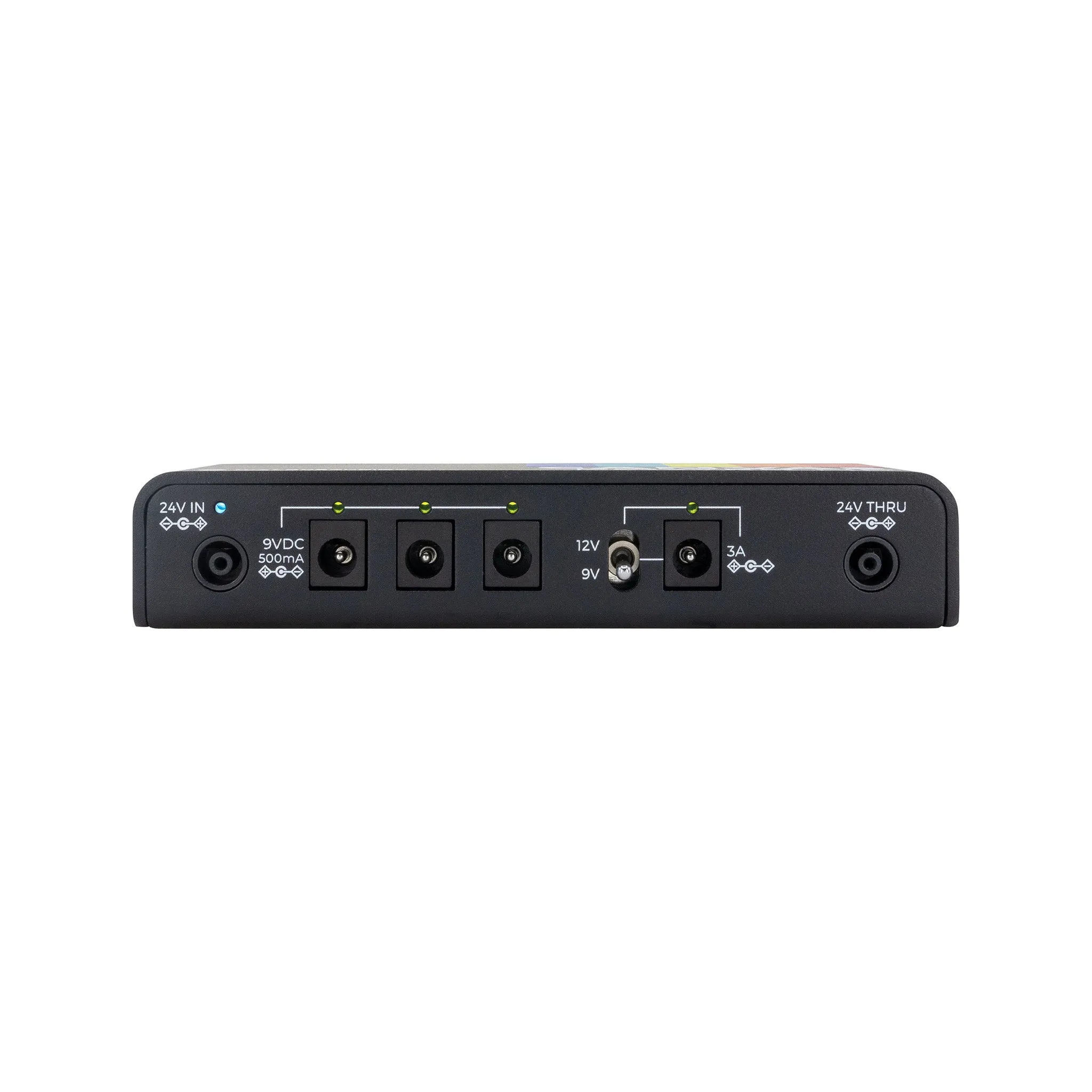

- Power Outputs: 1 - 3A (three amp, 3,000mA) 9V or 12V variable output, 3 - 9VDC 500mA outputs

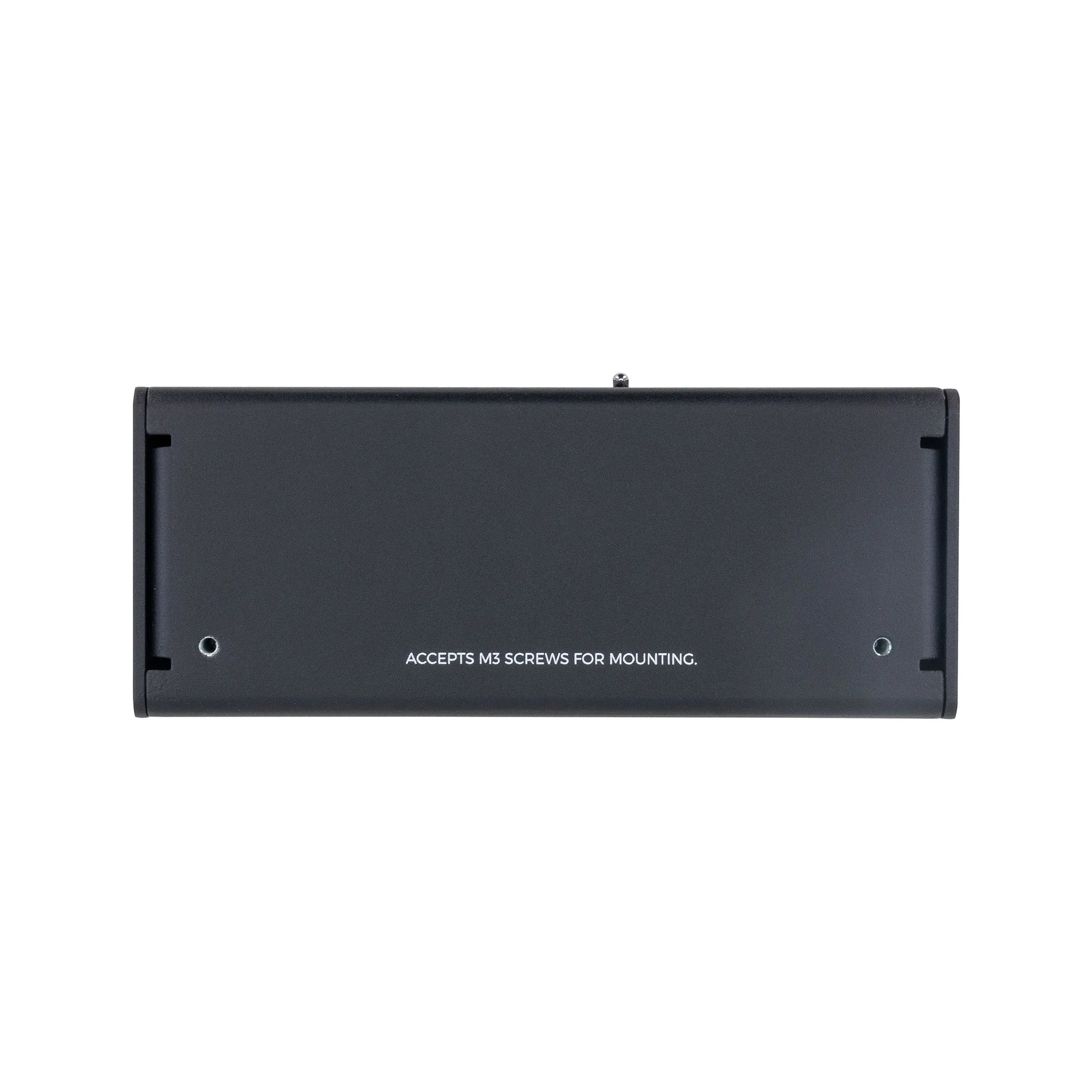

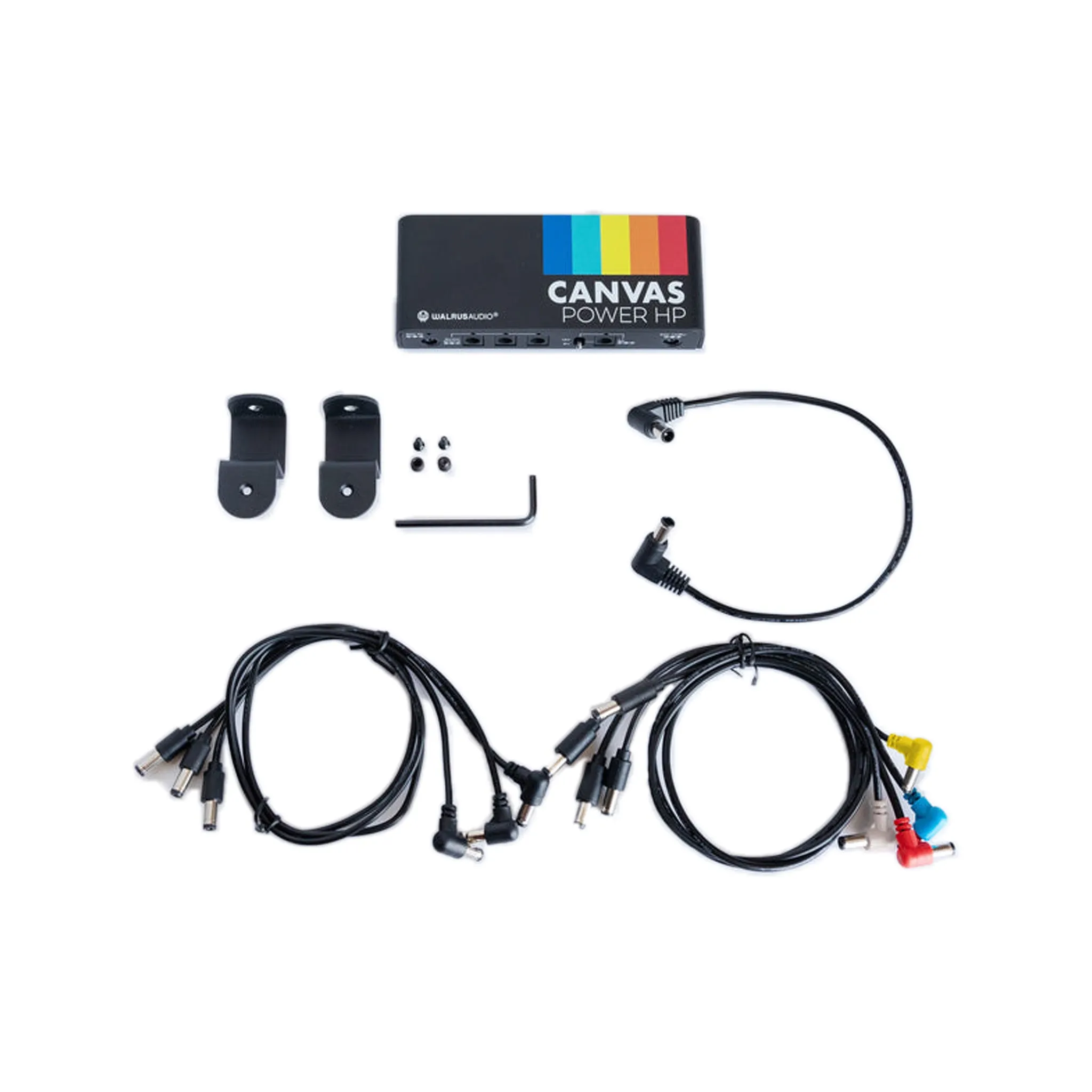

- Includes: 1 x Canvas Power Supply, 18” Straight to right angle DC Cable – Qty. 3, 2.1mm Standard Polarity DC Cable (Yellow) - Qty. 1, 2.1mm Reverse Polarity DC Cable (White) - Qty. 1, 2.5mm Reverse Polarity DC Cable (Red) - Qty. 1, 2.5mm Standard Polarity DC Cable (Blue) - Qty. 1, 12” EIAJ Link cable, C style mounting bracket set, M3 Hex Key
- Dimensions: 133mm x 54mm x 25.5mm (5.23in x 2.12in x 1in)
- Weight: 186g (.41lbs)
