Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise.
The Canvas Power 8 has 8 isolated power outputs delivering up to 500mA of clean power at 9v. Two of the outlets are variable voltage, letting you switch between 9v, 12v, and 18v for powering high-voltage pedals. It also includes a USB-C port for powering devices like your phone or tablet while you play.
Features:
- 15 isolated outputs
- 500mA on each 9V isolated outputs
- LED indicators to indicate a solid connection
- USB-C port for powering devices like your phone or tablet
- Onboard power meter for monitoring power consumption
- Voltage selection from 18, 12 or 9v (375mA max. @ 12V / 250mA max. @ 18V)
- With the 24V Link Output, you can connect up to two additional Canvas Power devices
Specifications:
- Power Outputs: 13 - 9VDC 500mA outputs, 2 - 9V, 12V or 18V variable outputs, 1 - 5V 1.5A USB C charging output

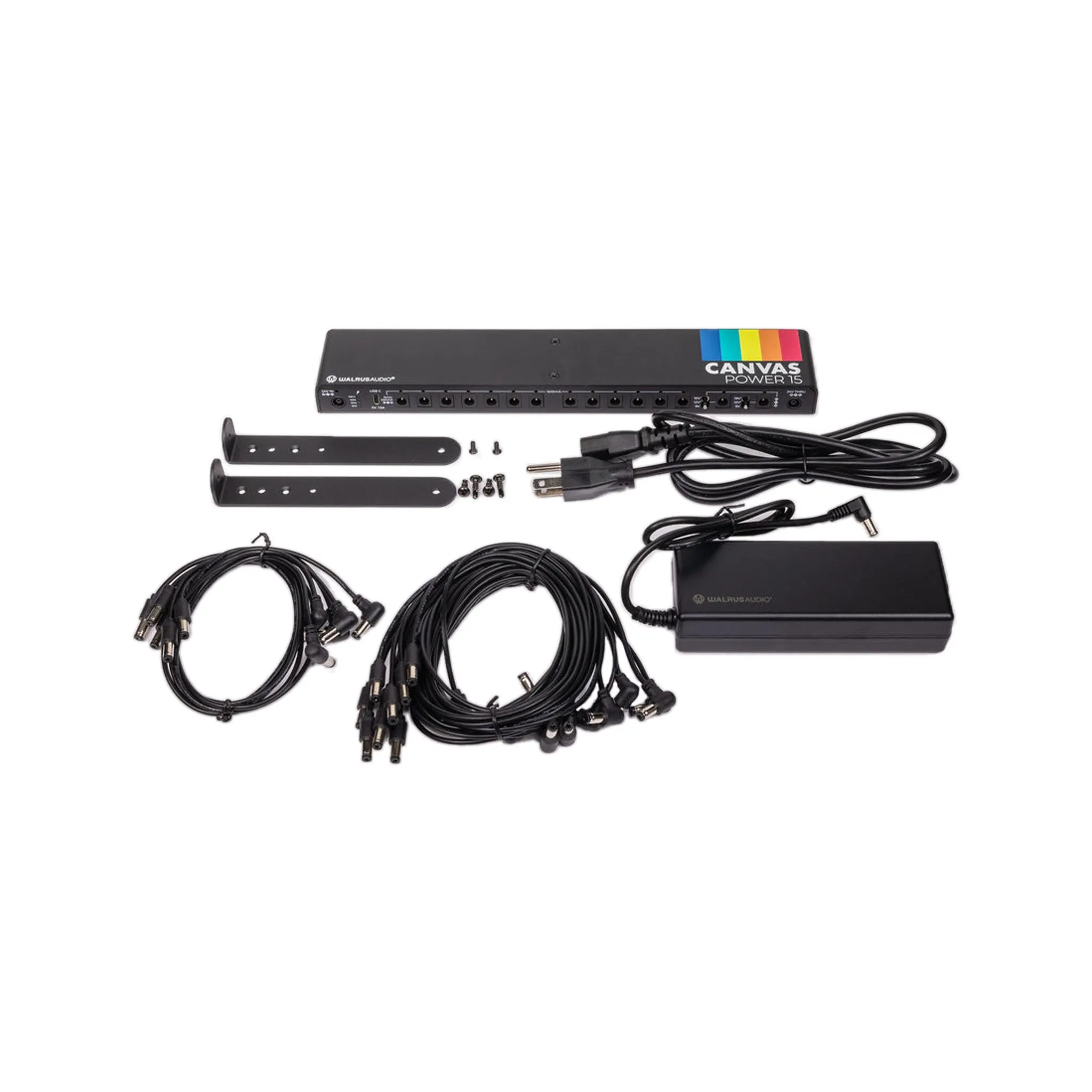

- Includes: 1 x Canvas Power Supply, 18” straight to right angle DC Cable – Qty. 5, 36” straight to right angle DC Cable – Qty. 10, 96W, 24V DC 4A power brick and country specific IEC cable, L style mounting bracket set
- Dimensions: 312mm x 54mm x 25.5mm (12.28in x 2.12in x 1in)
- Weight: 426g (.93lbs)
